Benefit
- Resolve caller names when ringing
- Choose contacts by navigating from the snom phone book
Option A (CSV import)
After a successful sync (target: sync.blue® directory), you can use your snom-compatible Simply download the phone book as a CSV file and use it as a phone book in your snom phone simply import.
Steps
- On sync.blue® Dashboard: Create a new connection that syncs your contact source to the target "sync.blue® Directory" and wait for the sync process to complete.< /span>
- Download the CSV file:
Example: https://directory.sync.blue/contacts/DEMOabcABC0123< /span>/snom/v2 - In the web interface of the snom phone: import the CSV file.
Example -URL: http://192.168.178.147/adr.htm
Option B (XML phone book)
Setup in the snom web interface
Certificates
- Load this here current sync.blue® Directory SSL certificate high: http://YOUR-SNOM-IP-ADDRESS/certificates_server_certs.htm
- On the same page, also load this current sync.blue® CA certificate high.
The result should look like this:
Function key
- Assign the "Directory" function button on the side http://YOUR-SNOM-PHONE-IP/fkey.htm as Button type "Action URL" with the URL https://directory.sync.blue/contacts/YOUR-SECRET/snom/v1
The result should look like this:
Known limitations of the snom XML phone book
- When ringing, the name does not shown on the phone display based on the XML phone book.
- Contacts cannot be searched for via snom keystrokes (only via scrolling possible).
Option C (LDAP)
1. Open the “Advanced Settings” via the snom web interface and enter Enter the following parameters under the heading “LDAP”:
snom Interface | Value |
---|---|
LDAP Name Filter | (sn=%) |
LDAP Number Filter | (businessPhone=%) |
LDAP Name Filter During Call | (sn=%) |
LDAP Number Filter During Call | (businessPhone=%) |
Server Address | ldap.sync.blue |
Port | 389 |
Base | ou=YOUR_API_KEY,ou=contacts,dc=sync,dc=blue |
Username | uid=YOUR_API_KEY,ou=users,dc=sync,dc=blue |
Password | YOUR_API_KEY |
LDAP Name Attributes | sn gn |
LDAP Number Attributes | businessPhone mobilePhone homePhone |
LDAP Display Name | sn, gn |
Country Code | de or en |
Area code | empty |
LDAP over TLS | off |
Initial Query | on |
LDAP Sort Mode | Client |
LDAP Sort Parameters | sn gn |
2. Save the new settings and confirm application.

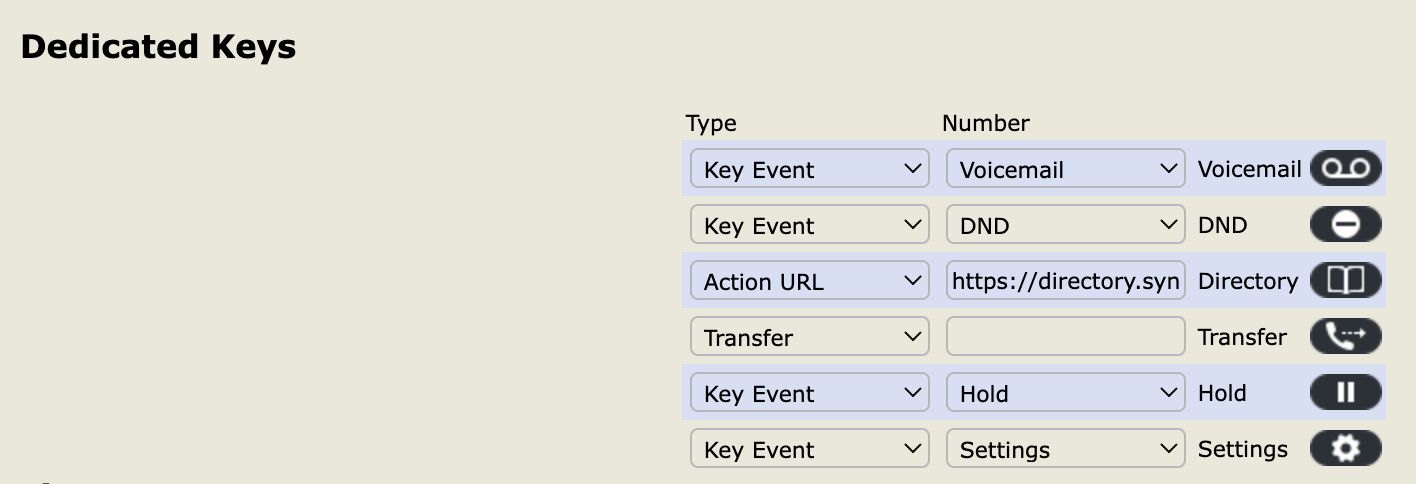

3. Open the menu item Setup -> Function keys and receipts the dedicated "Directory" key with the "Key Event" called "LDAP Directory":
4. Save this page and apply the changes.
Further information is available in general Instructions for synchronizing contacts with an LDAP directory to read.
Compatibility
These instructions were tested with a snom D765, firmware snomD765-SIP 10.1.73.22.
Known limitations
- The connection to the sync.blue® LDAP server is unencrypted.
- The following are not yet compatible:
- snom M900 (since snom uses the LDAP attribute “givenName” instead of “gn” is used)
